John Deere 35 G Compact Excavator For RENT Northport AL

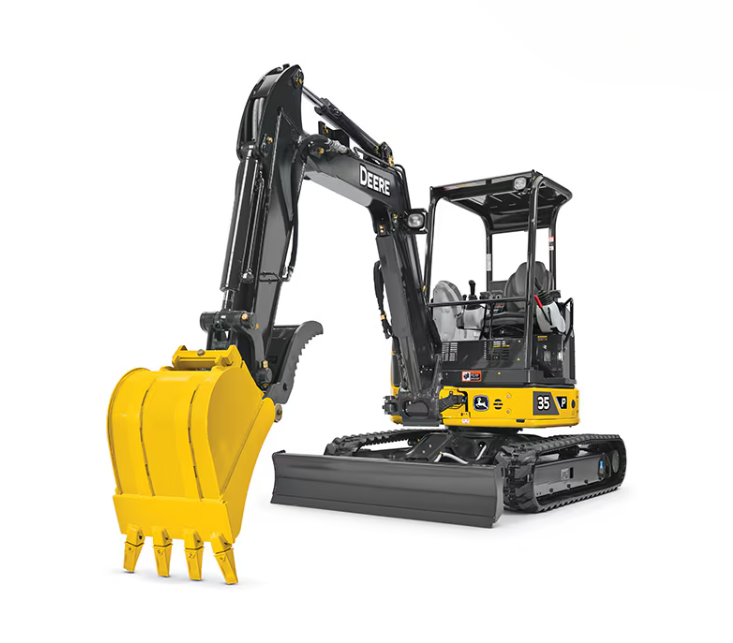

John Deere 35 G Compact Excavator

Rent as low as $495.00/Day

Book Now

Highlights

location : Northport, AL

availability : In Stock

Condition : New

make : John Deere

model : 35 G Compact Excavator

color : Yellow

vehicle type : Utility

category : Excavator

RECENTLY VIEWED

info specifications

When you need more from your compact excavator, the John Deere 35 P-Tier might be your “one and done. “This small-but-mighty muscle specializes in making work in close quarters seem like no big deal. Loaded with customer-inspired ideas like significant lift and reach, precise control, and an amazingly comfortable cab, digging, excavating, and loading tasks become big possibilities. Plus, it runs quiet, too. Jobsite-proven standard and optional advantages including your choice of tracks and John Deere attachments push the 35 P-Tier to make a sizable impact on the potential and profitability of your operation.

Quiet comfort and control:

Spacious operator station has a wide entryway and backhoe- to excavator-style controls. Swing boom and foldable travel pedals are positioned for efficient operation and comfortable foot room. Noise-reducing muffler and isochronous high-idle speed help keep things noticeably quiet. Rubber
cab mounts isolate the operator from noise and vibration.

Start from zero:

Zero-tail-swing design maximizes maneuverability and performance in tight places such as urban and residential areas. Compact stature permits easy transport between jobsites, perfect for “dig-and-go” projects.

Resource management:

Auto-idle automatically reduces engine speed when hydraulics aren’t in use. Auto shutdown conserves precious fuel. Power/ economy modes optimize power for digging applications, further improving fuel efficiency.

Get back to it:

Standard backfill blade enables the 35 P-Tier to grade and fill, boosting machine versatility and stability when using attachments or working on uneven terrain.

Swing for the fences:

Put the 35 P-Tier’s independent-swing boom and 360-degree rotation to work taming difficult tasks. Impressive lift height and reach ease truck loading.

Handy hydraulics:

Standard quick-coupler-equipped, boom-mounted auxiliary hydraulic lines simplify attachment hookup. Return-flow selector valve accommodates hydraulic-driven attachments that operate either one or two ways. Wedge-style coupler enables swift changes of a wide range of buckets and attachments, such as hydraulic hammers, plate compactors, and augers.

Safe travels:

No operator activation is required for high-speed travel. Track speeds automatically slow to low whenever a heavier load is encountered, then return to high when the load normalizes.

Designed for durability:

Heavy-duty side shields deflect material and impacts, protecting boom/blade cylinders and drive motors. Single-pin swing-post increases boom rigidity. Reinforced D-channel side frames and heavy-duty X-frame help extend wear life.

Maintenance made easy:

Hinged door provides wide-open access to the side-by-side oil cooler and radiator. Operator station tilts forward 50 degrees to reach the swing motor, hydraulic control valve, engine starter motor, and alternator. Extended service intervals allow the machine to work longer before maintenance is needed.

Make the most of your investment:

Already own some John Deere attachments? Many models including buckets, hydraulic hammers, and augers also work on other compact machines so you can redefine fleet utilization — and your bottom line.

Dig deeper and reach higher with the unstoppable John Deere Compact Excavator!

Specifications

Engine

Engine	35 P-TIER
Manufacturer and Model	Yanmar 3TNV88F
Non-Road Emission Standard	EPA Final Tier 4/EU Stage IV
Displacement	1.642 L (100.2 cu. in.)
Net Power (ISO 9249)	17.4 kW (23.3 hp) at 2,400 rpm

Powertrain

Maximum Travel Speed

Low: 2.8 km/h (1.7 mph) / High: 4.3 km/h (2.7 mph)

Hydraulics - Open center with 2 variable-displacement pumps and 1 fixed-gear pump

Pump Flow Piston	2 x 38.4 L/m (2 x 10.1 gpm)
Pump Flow Gear	22.8 L/m (6.0 gpm)
Auxiliary Flow	61.2 L/m (16.2 gpm)
Controls	2 hydraulic pilot-operated controls for boom, arm, bucket, swing, boom swing, travel, and auxiliary functions

Electrical

Alternator Rating	55 amp
Work Lights	2 halogen: 1 mounted on operator’s station and 1 mounted on boom

Undercarriage

Track, Rubber	300 mm (12 in.)
Ground Pressure	1315-mm (4 ft. 4 in.) Standard Arm and Standard Counterweight 1715-mm (5 ft. 8 in.) Long Arm and Extra Counterweight
With Rubber Track - With Canopy	32.0 kPa (4.6 psi)
With Rubber Track - With Cab	33.0 kPa (4.8 psi)
With Rubber Track - With Canopy	33.7 kPa (4.9 psi)
With Rubber Track - With Cab	35.2 kPa (5.1 psi)

Upperstructure

Swing Speed	9.0 rpm
Independent Swing Boom - Left Canopy	72 deg.
Independent Swing Boom - Left Cab	62 deg.
Independent Swing Boom - Right Canopy	62 deg.
Independent Swing Boom - Right Cab	62 deg.
Swing Brake	Spring applied, hydraulically released, automatic, disc type

Serviceability

Refill Capacities - Fuel Tank	42 L (11.1 gal.)
Refill Capacities - Cooling System	5.0 L (5.3 qt.)
Refill Capacities - Fuel Tank 42 L (11.1 gal.) Engine Oil With Filter	7.2 L (7.6 qt.)
Refill Capacities - Hydraulic Tank	32 L (8.5 gal.)

Operating Weights - With Canopy 1315mm (Standard Arm and Standard Counterweight)

With Full Fuel Tank and 79-kg (175 lb.) Operator	3520 kg (7,760 lb.)
Optional Angle Blade	296 kg (653 lb.)
Standard	540 kg (1,190 lb.)
Additional	240 kg (529 lb.)

Operating Weights - With Cab - 1315-mm (4 ft. 4 in.) Standard Arm and Standard Counterweight

With Full Fuel Tank and 79-kg (175 lb.) Operator	3690 kg (8,135 lb.)
Optional Angle Blade	296 kg (653 lb.)
Standard	540 kg (1,190 lb.)
Additional	240 kg (529 lb.)

Operating Weights - With Canopy - 1715-mm Long Arm and Extra Counterweight

With Full Fuel Tank and 79-kg (175 lb.) Operator	3783 kg (8,340 lb.)
Optional Angle Blade	296 kg (653 lb.)
Standard	540 kg (1,190 lb.)
Additional	240 kg (529 lb.)

Operating Weights - With Cab- 1715-mm Long Arm and Extra Counterweight

With Full Fuel Tank and 79-kg (175 lb.) Operator	3953 kg (8,715 lb.)
Optional Angle Blade	296 kg (653 lb.)
Standard	540 kg (1,190 lb.)
Additional	240 kg (529 lb.)

Operating Dimensions - Standard Arm and Canopy - 1315-mm (4 ft. 4 in.)

Maximum Cutting Height	4.87 m (16 ft. 0 in.)
Maximum Dumping Height	3.46 m (11 ft. 4 in.)
Maximum Digging Depth	3.06 m (10 ft. 0 in.)
Maximum Digging Reach	5.21 m (17 ft. 1 in.)
Minimum Front Swing Radius	2.08 m (6 ft. 10 in.)
Transport Length	4.64 m (15 ft. 3 in.)
Arm	19.0 kN (4,277 lb.)
Bucket	27.1 kN (6,085 lb.)

Operating Dimensions - Standard Arm and Cab - 1315-mm (4 ft. 4 in.)

Maximum Cutting Height	4.70 m (15 ft. 5 in.)
Maximum Dumping Height	3.31 m (10 ft. 10 in.)
Maximum Digging Depth	3.06 m (10 ft. 0 in.)
Maximum Digging Reach	5.21 m (17 ft. 1 in.)
Minimum Front Swing Radius	2.24 m (7 ft. 4 in.)
Transport Length	4.64 m (15 ft. 3 in.)
Arm	19.0 kN (4,277 lb.)
Bucket	27.1 kN (6,085 lb.)

Operating Dimensions - Long Arm and Canopy - 1715-mm (5 ft. 8 in.)

Maximum Cutting Height	4.95 m (16 ft. 3 in.)
Maximum Dumping Height	3.57 m (11 ft. 9 in.)
Maximum Digging Depth	3.46 m (11 ft. 4 in.)
Maximum Digging Reach	5.52 m (18 ft. 1 in.)
Minimum Front Swing Radius	2.19 m (7 ft. 2 in.)
Transport Length	4.75 m (15 ft. 7 in.)
Arm	16.9 kN (3,792 lb.)
Bucket	27.1 kN (6,085 lb.)

Operating Dimensions - Long Arm and Cab - 1715-mm (5 ft. 8 in.)

Maximum Cutting Height	4.74 m (15 ft. 7 in.)
Maximum Dumping Height	3.39 m (11 ft. 1 in.)
Maximum Digging Depth	3.46 m (11 ft. 4 in.)
Maximum Digging Reach	5.52 m (18 ft. 1 in.)
Minimum Front Swing Radius	2.30 m (7 ft. 7 in.)
Transport Length	4.75 m (15 ft. 7 in.)
Arm	16.9 kN (3,792 lb.)
Bucket	27.1 kN (6,085 lb.)
